Neurobiology Research, Alzheimer's disease related
Trem2-Flox
Trem2-Flox
Nomenclature
C57BL/6-Trem2em2(flox)/IL
Cat. NO.ILCKO-190063
Strain StateLive
Gene Summary:
| Synonyms | TREM-2, Trem2a, Trem2b, Trem2c |
| NCBI ID | 83433 |
| MGI ID | 1913150 |
| Ensembl ID | ENSMUSG00000023992 |
| Human Orthologs | TREM2 |
Research Application:
Description:
Humanized Gene Knock-in Strategy

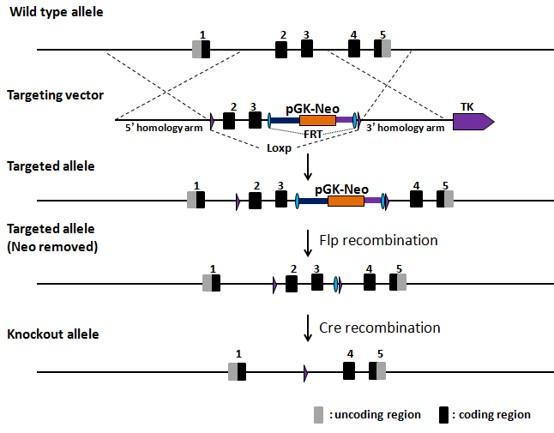

Figure 1. Targeting strategy for Trem2 gene CKO mouse model by ES cell targeting method.
Genotyping Strategy

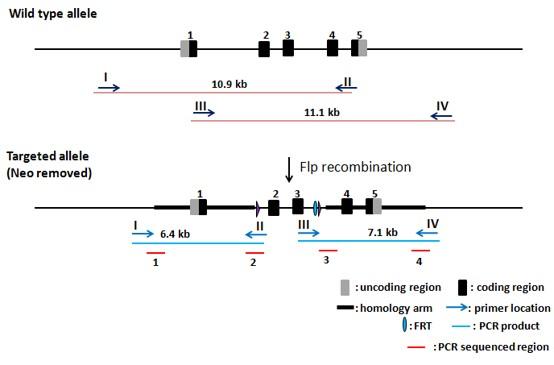

Figure 2. Genotyping strategy for heterozygous F1 mice. Genotyping PCR was done using primer sets for the 5&rsquo, arm (regions 1 and 2) and 3&rsquo, arm (regions 3 and 4). The 5&rsquo, arm PCR yielded a 6.4 kb amplified fragment in the positive F1 mice and a 10.9 kb fragment would be amplified. The 3&rsquo, arm PCR yielded a 7.1 kb fragment in F1 positive mice and a 11.1 kb fragment in negative F1 mice.
PCR Gel Electrophoresis to Genotype Recombinant F1 Mice

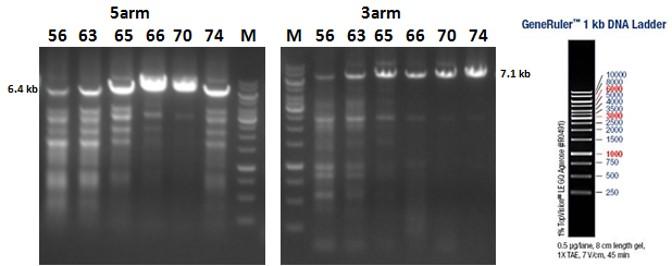

Figure 3. Agarose gel electrophoresis of PCR results. 5&rsquo, recombinant fragment (5'arm ), 3&rsquo, recombinant fragment (3'arm ). Six positive F1 mice were identified and confirmed by Sanger sequencing (data not shown). WT wild type control, M: 1kb DNA ladder.
