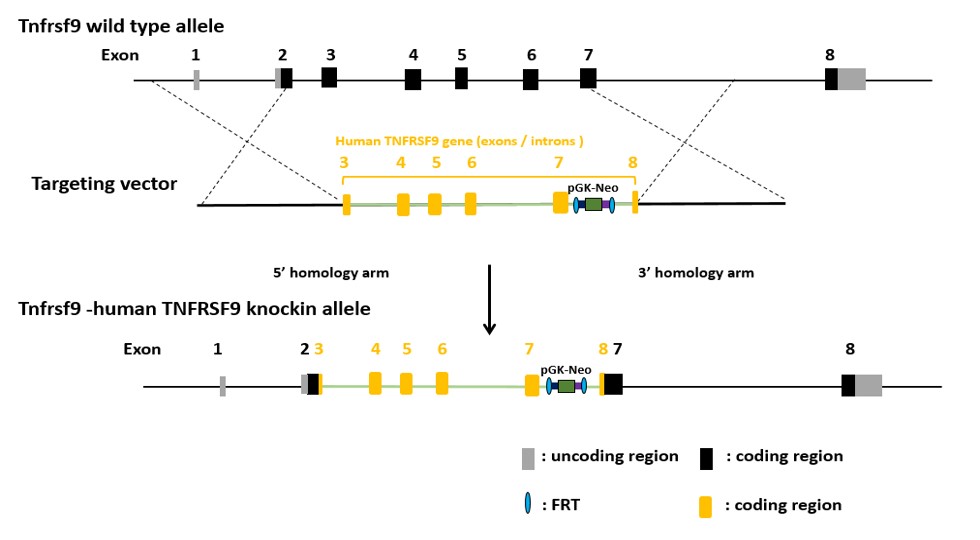

Humanized Strategy
Validation Data

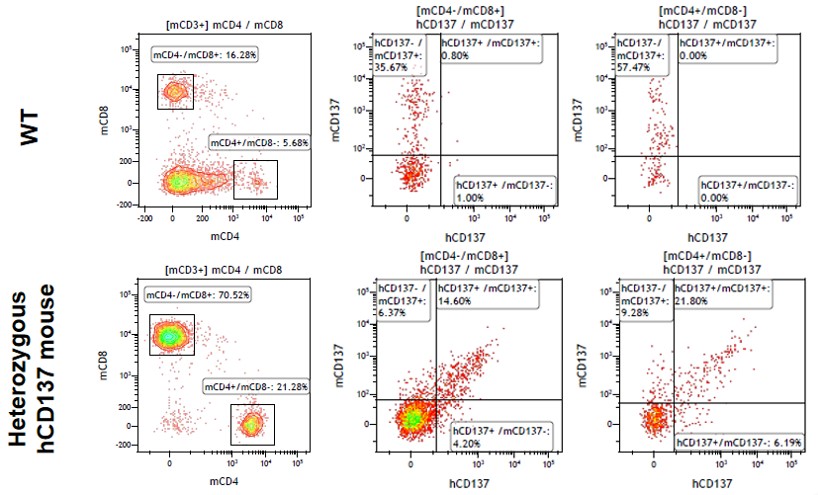

Figure 1. Expression of humanized CD137 (4-1BB) in the activated spleen lymphocytes of heterozygous humanized 4-1BB mice is detected by FACS.
The spleen lymphocytes of heterozygous humanized 4-1BB mice were activated by anti-CD3 and anti-CD28 for 48 hours
